AVM - AVM Fritz! Box 4020 Wireless Lan Router

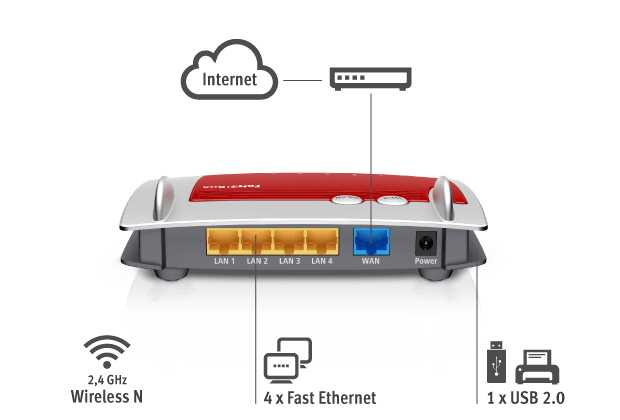

•WAN port for the connection to a cable/DSL/fiber optic modem or existing network
•4 x Fast Ethernet
•Wireless N with up to 450 Mbit/s
•1 x USB 2.0 port for printers and storage media

































Internet
•Wireless router for the connection to a cable/DSL/fiber optic modem or 4G/3G dongle
•Use of existing Internet connections via LAN and wireless LAN
•Support for IPv6
•Stateful Packet Inspection Firewall with port forwarding
•Secure remote access over the Internet with VPN (IPSec)




















Wireless LAN
•Wireless radio networks compliant with 802.11n (up to 450 Mbit/s gross; 2.4 GHz) and 802.11b/g
•Secure ex works with WPA2 encryption
•AVM Stick & Surf: automatic security for wireless surfing
•WLAN button (to switch wireless LAN on/off manually)
•Wi-Fi Protected Setup (WPS)
•Wireless guest access – secure surfing for friends and visitors
•Wireless network range extended through repeater function
•Wireless auto channel: Automated search for wireless LAN radio channel free of interference
•WLAN Eco for optimum performance at minimum power consumption




















Convenience for the home network
•Media server makes music, pictures and videos available to devices in the home network (SMB, FTP, UPnP AV)
•With MyFRITZ!, secure access to your own FRITZ!Box from anywhere
•FRITZ!NAS – simple, browser-based access to all files in the network, wherever they are stored
•Networked applications such as IPTV, video on demand and media streaming
•Parental controls, push service, cloud contacts, online storage
•Guest access: sharing of existing Internet connection over LAN or wireless LAN
•Wake on LAN over the Internet
•Supports devices compliant with DLNA




















FRITZ!OS
•"fritz.box": clearly laid out user interface, for intuitive operation via Web browser
•User interface optimized for smartphones and tablets (responsive design)
•Free updates for new functions and security
•Advanced view for special configuration options, help function with full-text search
•FRITZ!Apps for wireless LAN telephone calls in the home network, file access from on the go, control of webcams and more (Android and iOS
•Smart Home features integrated in the user interface
•Smart Home devices can be switched manually and automatically both in the home network and from the Internet

Interfaces
•4 x Fast Ethernet (10/100 Base-T)
•Wireless access point compliant with IEEE 802.11n, g, b
•1 x USB 2.0 port for printers and storage media


Package contents
•FRITZ!Box 4020
•Power supply unit
•1.8 meter network cable

•Quick guid
Device properties
•Dimensions (W x H x D): 166 x 120 x 48 mm
•Suitable for tabletop or wall-mounted operation
•Medium power consumption: 2 – 7 W

Warranty
•5-year manufacturer’s warranty

Article Number
•20002744
