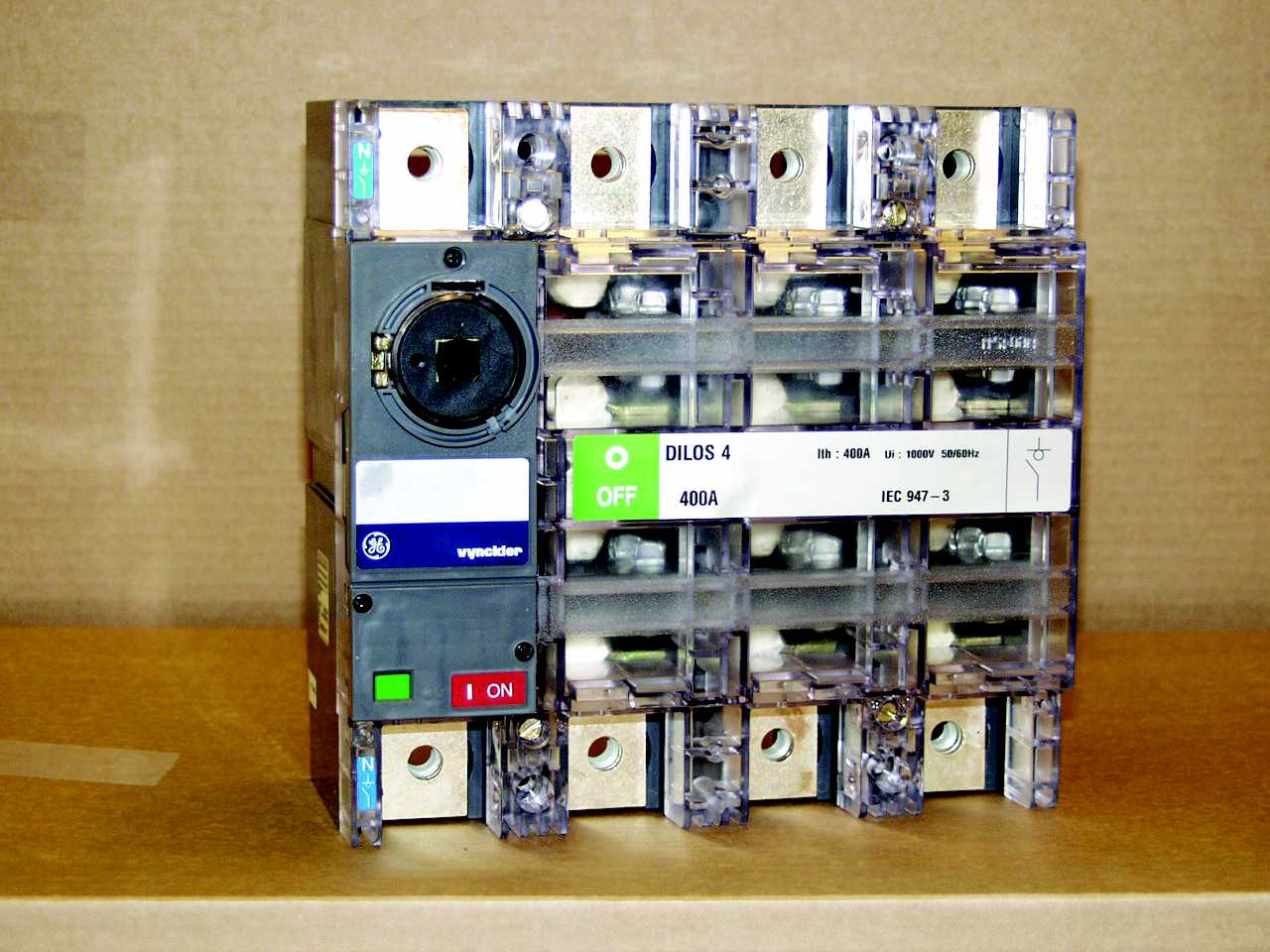

GE - DILOS 4 400-4 LASTBRYTER 400A DILOS 4 400-4 LASTBRYTER 400A
Logg inn eller opprett en konto for å se dine priser og bestille
Grunnleggende spesifikasjoner
Nominell kontinuerlig strøm Iu - 400 A
Antall poler - 4
Apparatkonstruksjon - Innbyggingsapparat, fastmontert
Egnet for gulvmontering - Ja
Utførelse som hovedbryter - Ja
Emballasje og betingelser
1 STK
Skaffevare
EAN/GTIN
3390207305020
Elnummer
1431340
Leverandørens varenummer
730502
Typebeskrivelse
1431340
Nominell kontinuerlig strøm Iu
400 A
Antall poler
4
Apparatkonstruksjon
Innbyggingsapparat, fastmontert
Egnet for gulvmontering
Ja
Utførelse som hovedbryter
Ja
Utførelse som vedlikehold-/servicebryter
Ja
Utførelse som sikkerhetsbryter
Nei
Utførelse som nødsstopp-innretning
Nei
Utført som vendebryter
Nei
Antall brytere
1
Maks nominell driftsspenning Ue ved AC
690 V
Nominell driftsspenning
400...690 V
Nominell kontinuerlig strøm, AC-21, 400V
400 A
Nominell korttids-strømfasthet lcw
20 kA
Nominell driftseffekt ved AC-23, 400V
218 kW
Betinget nominell kortslutningstrøm lq
100 kA
Antall hjelpekontakter normalt lukket
0
Antall hjelpekontakter normalt åpne
0
Antall hjelpekontakter som veksler
0
Motordrift som opsjon
Nei
Integrert motordrift
Nei
Spenningsutløser valgbar
Nei
Egnet for frontmontering 4-hulls
Nei
Egnet for frontmontering senter
Nei
Egnet for innbygging i fordelingstavler
Nei
Egnet for midlertidig montasje
Ja
Utførelse av betjeningselement
Andre
Låsbar
Ja
Tilkoblingstype hovedstrømkrets
Skrukobling
Verneklasse (IP) forside
IP00
Dilos 4 - 400A up to 630A
Performance
Panel mounting
Safety-switch-disconnector (main disconnector)
Disconnect function
Visible contact indication - transparent cover
Quick make and quick break mechanism
Independent opening and closing
Positive contact indication (PCI)
Defeat mechanism rotary handle
Double knife contacts - high short-circuit resistance
Number of poles 3P - 4P
With changeover system
Standards
IEC 60947-1 and IEC 60947-3, DIN VDE 0660 Teil 107, BS EN 60947-3, CEI 17-11 (Fasc. 1039), EN 60947-3, NBN EN 60947-3, NF C 63-130, UL 508 Safety-switch-disconnector (red/yellow) according to DIN VDE 0113 Teil 1SPECIFICATIONS
Series Switch-disconnectors - DILOS
Conventional enclosed thermal current Ithe = Ith 400 A
Number of poles 4P
Type of disconnector Switch-disconnector
Contact position indication Visible contact position indication
Mounting Panel mounting
Type of Dilos/Fulos DILOS 4
400/415V (AC23A/AC23B) 400 A
500V (AC23A/AC23B) 400 A
690V (AC23A/AC23B) 400 A
400/415V (AC22A/AC22B) 400 A
500V (AC22A/AC22B) 400 A
690V (AC22A/AC22B) 400 A
400/415V (AC21A/AC21B) 400 A
500V (AC21A/AC21B) 400 A
690V (AC21A/AC21B) 400 A
110V (DC23A 2P) 400 A
250V (DC23A 4P) 400 A
Rated operational voltage Ue (V) 690 V
Rated impulse withstand voltage (2000 m) Uimp 8 kV
Standards BSNBNEN60947-3
CEI17-11(Fasc.1039)
DINVDE0660Teil1
IEC60947-1
IEC60947-3
K63B
NBNEN60947-3
NFC63130
Approvals KEMA
Conventional enclosed thermal current lthe 400 A
Maximum torque on terminals (Nm) 60 Nm
Rated insulation voltage Ui (V) 1000 V
Durability (number of operational cycles) electrical 1000
Max Rated Operational Power 400/415V (AC23 (kW)) 218 kW/230 kW
Max Rated Operational Power 500V (AC23 (kW)) 295 kW
Max Rated Operational Power 690V (AC23 (kW)) 390 kW
Rated capacity power at 400V (kVAR) 19 kVAr
Terminal capacity (Cu-rail mm x mm) Cu-rail 2x40x6 mm
Rated short circuit making cap Icm (kA peak) Ue = 400V 60 kA
Rated short circuit making cap Icm (kA peak) Ue = 415V 60 kA
Rated short circuit making cap Icm (kA peak) Ue = 500V 60 kA
Rated short circuit making cap Icm (kA peak) Ue = 690V 60 kA
Rated short time withstand current Icw (kA rms) 1 s 20 kA
Rated short time withstand current Icw (kA rms) 0.25 s 35 kA
Durability (number of operational cycles) mech. (min.) 5000
Rated Cond S/C current Backup protection kA rms @ 400V 100 kA
Rated Cond S/C current Backup protection kA rms @ 415V 100 kA
Rated Cond S/C current Backup protection kA rms @ 500V 100 kA
Rated Cond S/C current Backup protection kA rms @ 690V 100 kA
EAN13 3390207305020
DIMENSIONS
Weight 9.6 kg
