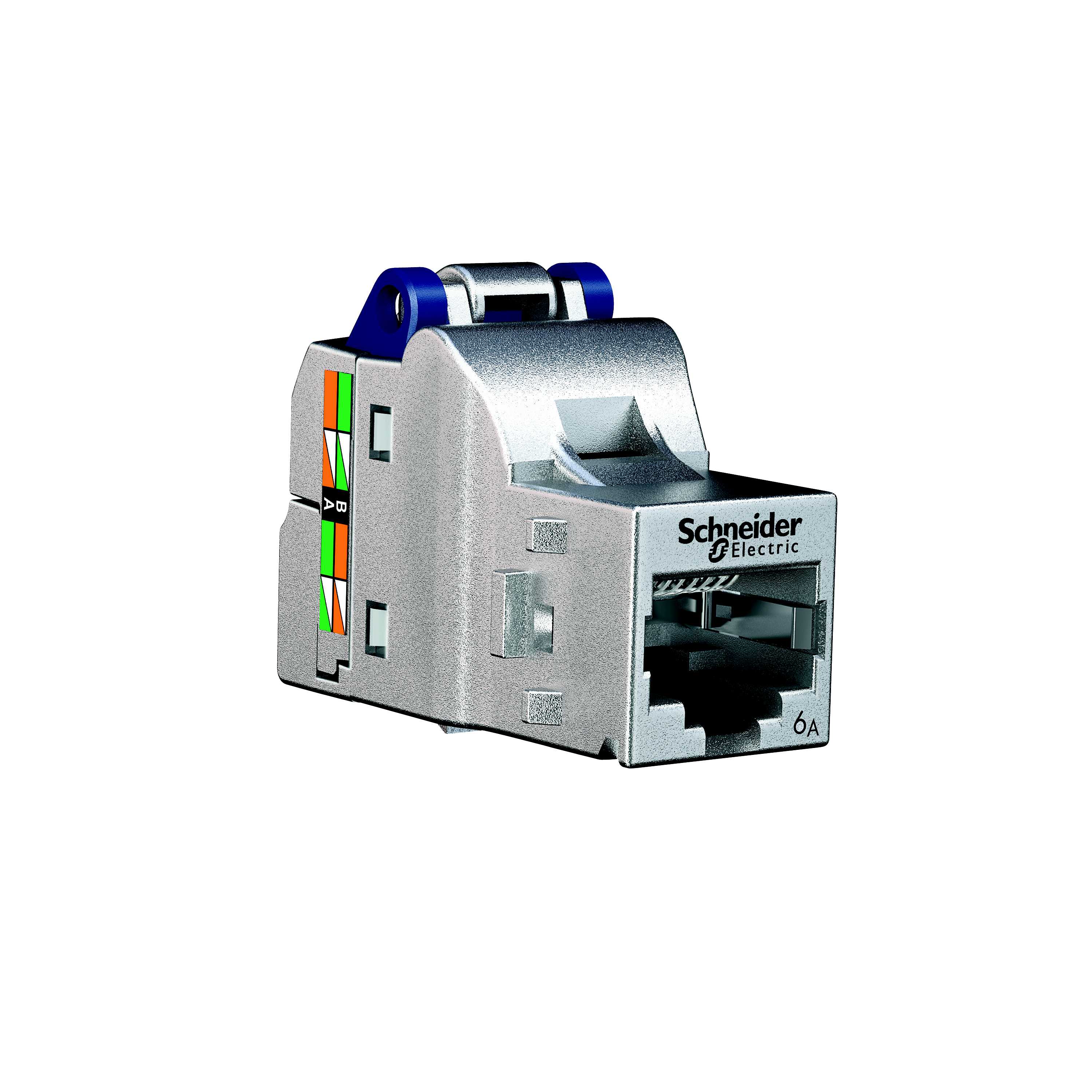

Schneider Electric - Konnektor S1 Cat6A STP 500Mhz 1 pk Actassi - VDIB1771XB01

Skjermede konnektorer S-One DPM kategori 6A for sambandsklasse EA. Tydelig fargemerking for enkel konnektering uten bruk av verktøy. DPM design (Direkte Panel Montering) betyr at konnektorene klikkes direkte på plass uten bruk av montasjerammer. I uttak brukes montasjerammer for å feste konnektoren. Alle kategori 6A konnektorer har blå konnektorhette. Kat 6A, 500 MHz, sambandsklasse EA, 568A/568B. Farge: Mørk blå, H/B/D: 28/18/35 mm. Standarder: EN50173-1, ISO/IEC11801 og TIA/EIA-568-C.2. Støtter Gigabit Ethernet, 10/100 BaseT. Temperaturområde: -40 °C til +70 °C. One piece design -easy to handle and to make connection.Delivered open/ready to use/ - U-shape for cable entry to ease installer job. Integrated earth drain contact provides double earthing. Smart bridle will automatically locked the cable and provide 360Â earthing. Central cable entry for optimized performances.protected IDC so that impossible to damage cable or fingers. Component certified according to ISO/IEC 60603-7. Audible /clic/ to know that S-ONE is closed and connection is done. Quick release button to re-open the jack in case of wiring check or modification required. Compatible with all ACTASSI range with extended system warranty.
