Schneider Electric - Samlesk.f/iCV60 ARC 1P+N 24 m. - A9XNW224
Logg inn eller opprett en konto for å se dine priser og bestille
Grunnleggende spesifikasjoner
Antall faser - 1
Antall poler - 2
Fordelingsmåling - 18 mm
Lengde - 410 mm
Nominell kontinuerlig strøm Iu - 100 A
Emballasje og betingelser
1 STK
Lagervare
EAN/GTIN
3606487087441
Elnummer
1602518
Leverandørens varenummer
A9XNW224
Typebeskrivelse
A9XNW224
Antall faser:
1
Antall poler:
2
Fordelingsmåling:
18 mm
Lengde:
410 mm
Nominell kontinuerlig strøm Iu:
100 A
Egnet for antall enheter:
8
Kan kuttes i størrelse:
Ja
Bredde i antall modulmellomrom:
24
Type strømtilkobling:
Stift
Isolert:
Ja
Maks nominell driftsspenning Ue:
230 V
Egnet for enheter med N-leder:
Ja
Egnet for enheter med hjelpekontakt:
Ja
Farge:
Hvit

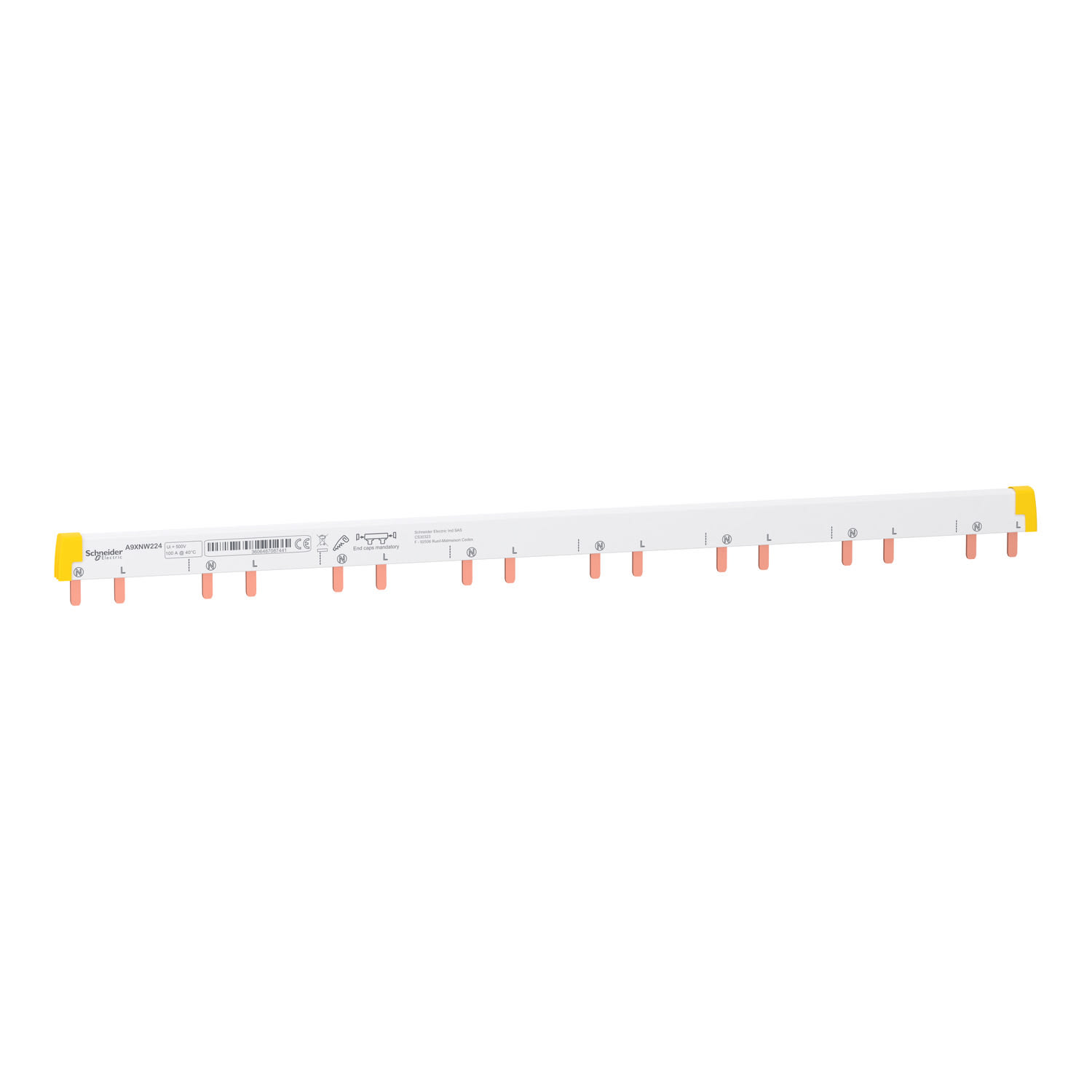

This Acti9 product is a cuttable horizontal comb busbar for Acti9 iC60.::It is dedicated to (add-on, Neutral, Line) installations. The distribution type is (N, L1).::It is a set of 1 product and is suitable for 24 devices with 2P and with associated 18mm add-on devices.::The IP degree of protection is IP20 with end-pieces and tooth covers.::The Ie rated operational current is 100A at 40°C.::The width in 9mm pitches is 48. The pollution degree is 3 conforming to IEC 60947-7-1 standard.::The Ui rated insulation voltage is 500VAC conforming to IEC 61439-1 standard. It has a Uimp rated impulse withstand voltage of 6kV.::The Ue rated operational voltage is 230VAC with an operating frequency of 50Hz to 60Hz.::The dimensions are (W) 410mm x (H) 10mm x (D) 30mm. The device colour is white (RAL 9003). The weight is 150g.::According to IEC 60695-2-1 standard, the fire resistance is self-extinguishing at 960°C within 30s.
