Zamel - Zamel RWS-311J 230vAc, 1 kanal, 230m, IP56, 1NO,
Logg inn eller opprett en konto for å se dine priser og bestille
Grunnleggende spesifikasjoner
Veggsender - Ja
Signaloverføring - Radio
Antall kanaler - 1
Monteringsmetode - Påvegg
Med manuell sender - Nei
Emballasje og betingelser
1 STK
Skaffevare
EAN/GTIN
5903669070603
Elnummer
6220188
Leverandørens varenummer
RWS-311J
Typebeskrivelse
6220188
Veggsender
Ja
Signaloverføring
Radio
Antall kanaler
1
Monteringsmetode
Påvegg
Med manuell sender
Nei
Vindussender
Nei
Materiale
Plast
Materialkvalitet
Termoplast
Halogenfri
Nei
Type overflate
Blank
Farge
Grå
Gjennomsiktig
Nei
Egnet for omkobler
Ja
Egnet for dimmer
Nei
Egnet for sjalusibryter
Nei
Egnet for indikasjonselement
Ja
Egnet for bevelsesføler
Nei
Description

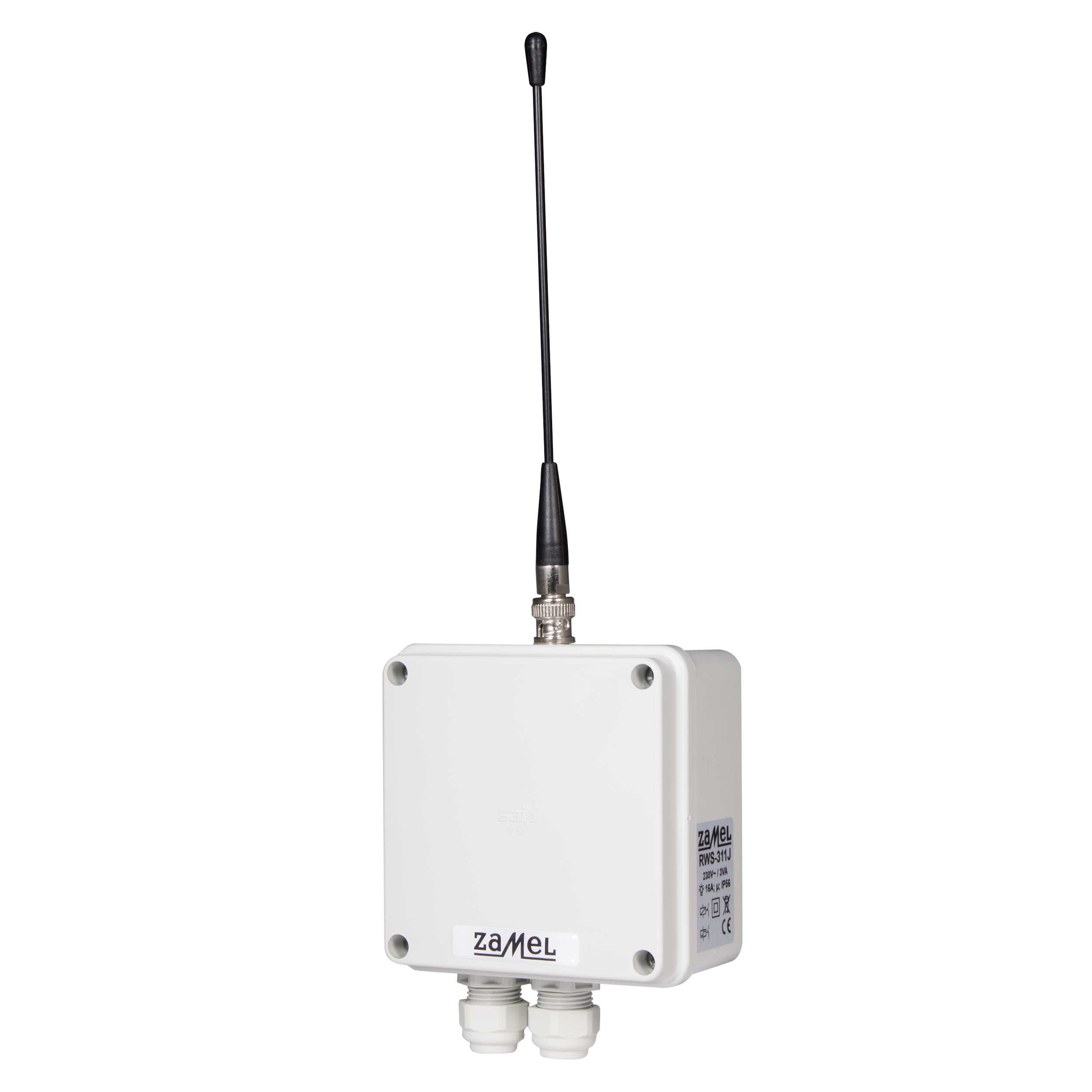

Radio power switch RWS-311J/ Z is used for a remote (radio) control of all kinds of electrical devices such as: motors, lighting fittings, driveway gates, pumps, garden lighting, etc. The device operates on a protocol compatible with wireless exta free system and cooperates with the system transmitters. Radio waves on 868.32 MHz frequency were used for the transmission between a transmitter and a receiver. The receiver has a hermetic casing (IP56) and therefore it can be mounted outdoor and can operate in difficult weather conditions. The RWS-311J/Z switch is supplied directly by 230 V AC. It is equipped with 1 NO contact output relay. The relay output capacity is 16 A / 250 V AC 4000 VA AC1. By means of RWS-311J/Z it is possible to control independently one electric circuits maximally. Cooperation with wireless exta free system gives a wide range of control possibilities. For example, after the application of EFC-02 Mini or EFC-01 controller, the switch can be controlled by means of mobile devices (tablets, smartphones) and the same it can automate certain control processes. In case of RWS-311J/Z, the set includes in addition to the switch a 2-channel remote control P-257/2. Other transmitters (maximum number is 113) can be assigned to the receiver.
Features
·remotely controlled switch of household electrical devices such as: lighting, fans, air conditioners, pumps, gates, optical and acoustic signalling devices as well as devices with difficult access
·unidirectional radio transmission (f = 868,32 MHz)
·coding in accordance with exta free system protocol
·cooperation with exta free system transmitters
·a possibility of control by means of mobile devices (in cooperation with EFC-02 Mini or EFC-01 controller)
·designed to be mounted both indoor and outdoor
·designed to operate in difficult weather conditions
·independent control of maximum 1 circuit
·a possibility of operation with several remote controllers (maximum 113)
·designed for continuous operation
·supplied by 230 V AC
·wide operation range up to 350 m in the open area
·a possibility of increasing the operation range by means of RTN-01 retransmitter
