LANSE 3-PLAY - FAN-OUT KIT 6-FIBER - 6970925
Logg inn eller opprett en konto for å se dine priser og bestille
Grunnleggende spesifikasjoner
Type tilbehør/reservedel - Andre
Tilbehør - nei
Reservedel - nei
Emballasje og betingelser
1 STK
Skaffevare
EAN/GTIN
7070746013681
Elnummer
6970925
Leverandørens varenummer
6970925
Typebeskrivelse
FAN-OUT KIT 6-FIBER 10STK.
Type tilbehør/reservedel:
Andre
Tilbehør:
nei
Reservedel:
nei
Applications
Field termination of loose tube cables at indoor or outdoor
cross-connects
Description

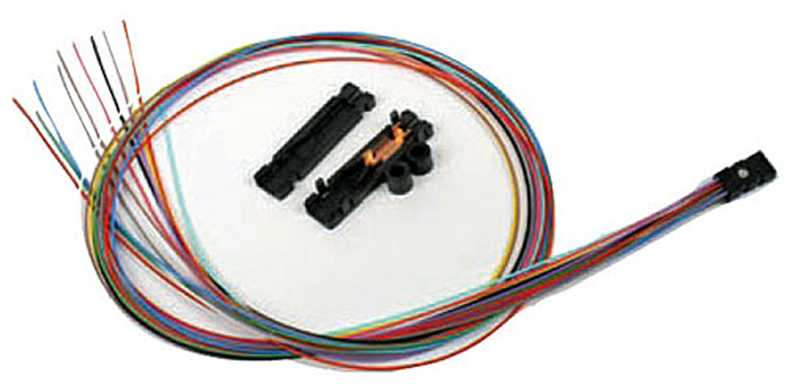

Corning Cable Systems Indoor and Outdoor Buffer Tube
Fan-Out Kits are specifically designed for the termination of
6- and 12-fiber buffer tubes. These buffer tube fan-out kits
provide the ultimate solution for those users who want to
field-install connectors. The kits provide the most compact,
easy-to-install fan-out solution requiring no additional hardware or space than that required for terminating tight-buffered
cables.
Indoor and outdoor kits feature a 900 µm fan-out assembly
that is color-coded to match the fiber color scheme. The fanout assembly is available with 6- or 12-fiber units in lengths of
25 or 47 inches. These different lengths provide the installer
the flexibility needed for a variety of hardware options.
Features / Benefits
Eliminates strain on fibers by isolating them from tensile
forces
Colored fan-out tubing
Snap-together furcation unit eliminates epoxy for
indoor kits
Compact design
Quick and easy to install
Optimized for field termination of cables
Excellent fiber routing capabilities
Bend radius protection designed into each unit
Outdoor kits include additional elements that compensate
for wider temperature fluctuations common in outdoor
environments
Field termination of loose tube cables at indoor or outdoor
cross-connects
Description
Corning Cable Systems Indoor and Outdoor Buffer Tube
Fan-Out Kits are specifically designed for the termination of
6- and 12-fiber buffer tubes. These buffer tube fan-out kits
provide the ultimate solution for those users who want to
field-install connectors. The kits provide the most compact,
easy-to-install fan-out solution requiring no additional hardware or space than that required for terminating tight-buffered
cables.
Indoor and outdoor kits feature a 900 µm fan-out assembly
that is color-coded to match the fiber color scheme. The fanout assembly is available with 6- or 12-fiber units in lengths of
25 or 47 inches. These different lengths provide the installer
the flexibility needed for a variety of hardware options.
Features / Benefits
Eliminates strain on fibers by isolating them from tensile
forces
Colored fan-out tubing
Snap-together furcation unit eliminates epoxy for
indoor kits
Compact design
Quick and easy to install
Optimized for field termination of cables
Excellent fiber routing capabilities
Bend radius protection designed into each unit
Outdoor kits include additional elements that compensate
for wider temperature fluctuations common in outdoor
environments
